B1420

B1420-AUDIO CASSETTE ERROR/INOPERABLE CASSETTE

For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.

- When Monitored:
- Continuously with the ignition on and the radio Cassette player turned on.

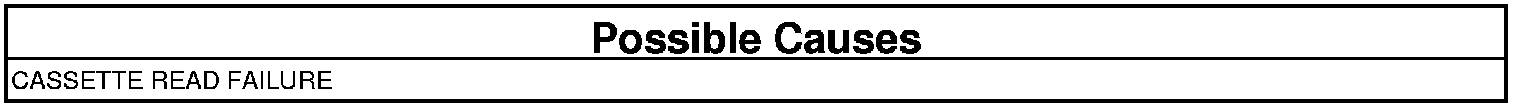

- Set Condition:
- The code will set when a damaged Cassette is placed in the Cassette Player.





RADIO
1. Replace the problem Cassette with a good, clean, undamaged, cassette.
2. Turn the radio cassette player on.
3. With the Scan Tool, read DTC's.

Does the Scan Tool display: B1420: AUDIO CASSETTE ERROR/INOPERABLE CASSETTE?

Yes

- Eject the inoperative cassette and replace the Radio/Cassette Player.
- Perform the BODY VERIFICATION TEST. Body Verification Test

No

- Test Complete.
