B1B05

B1B05-DRIVER AIRBAG SQUIB 2 CIRCUIT HIGH

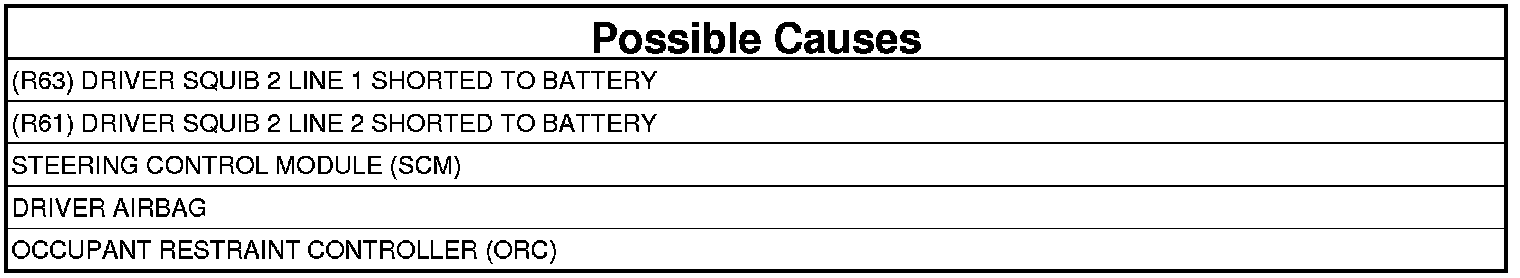

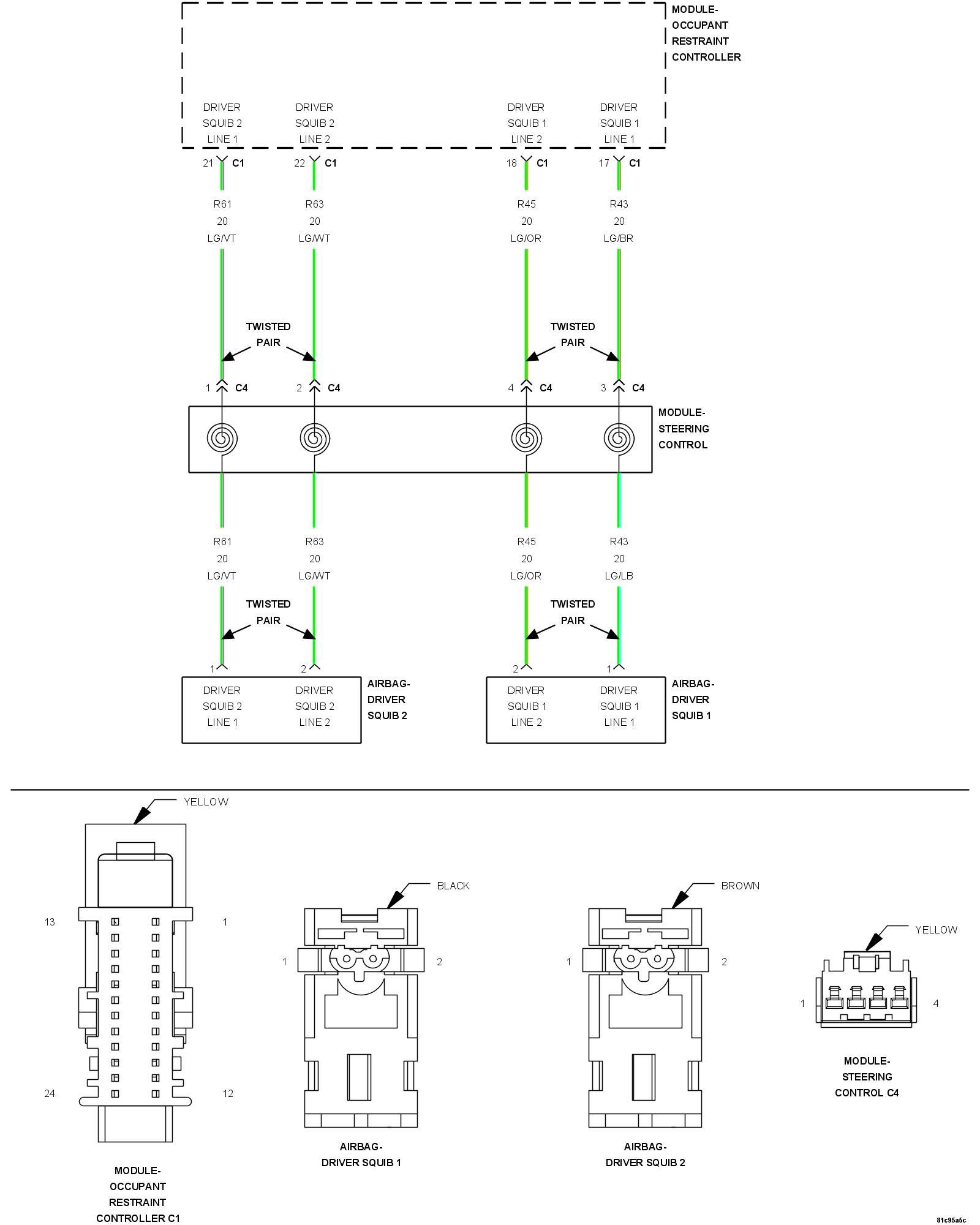

For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.

- When Monitored:
With the ignition on, the Occupant Restraint Controller (ORC) monitors the voltage of the Driver Squib 2 circuits.

- Set Condition:
The ORC has detected high voltage on the Driver Squib 2 circuits.

1. DETERMINE ACTIVE OR STORED DTC

NOTE: Make sure the battery is fully charged.

1. Select Active or Stored DTC.

Is the DTC active or stored?

ORC - ACTIVE DTC

- Go To 2

ORC - STORED DTC

- Go To 6

2. DRIVER AIRBAG SHORTED

WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Disconnect the Driver Airbag connector(s).

WARNING: Do not place an intact undeployed airbag face down on a hard surface, the airbag propels into the air if accidentally deployed. Failure to follow these instructions may result in possible serious or fatal injury.

NOTE: Check connectors - Clean and repair as necessary.

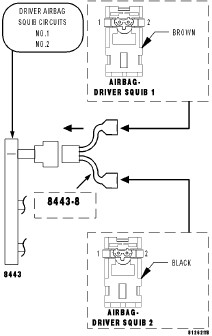

2. Connect the Load Tool 8443 and appropriate Jumper to the Driver Airbag connector(s).

WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

3. With the scan tool, read the active Occupant Classification Module DTC.

Does the scan tool display B1B05-DRIVER AIRBAG SQUIB 2 CIRCUIT HIGH?

Yes

- Go To 3

No

- WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

- Replace the Driver Airbag.
- Perform the ORC VERIFICATION TEST. Occupant Restraint Controller (ORC) Verification Test.

3. STEERING CONTROL MODULE SQUIB CIRCUIT HIGH

WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

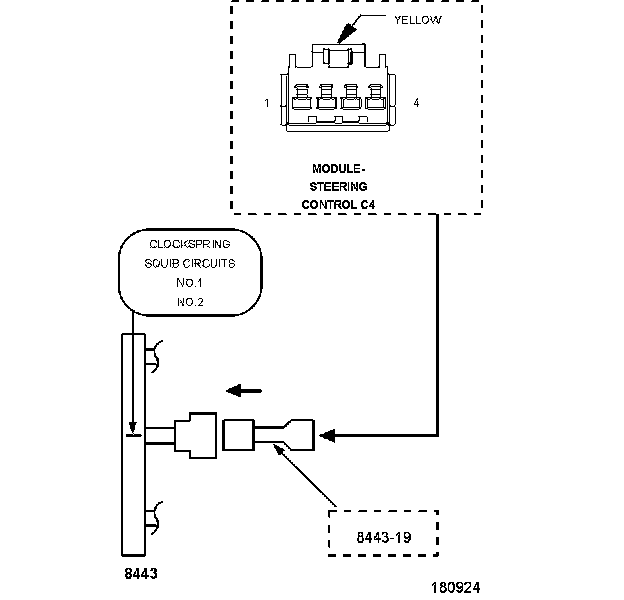

1. Disconnect the Load Tool 8443 and Jumper from the Steering Control Module C4 harness connector.
2. Disconnect the ORC harness connector(s).

NOTE: Check connectors - Clean and repair as necessary.

3. Connect the Load Tool ORC Adaptor 8443-25 to the ORC harness connector.

WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

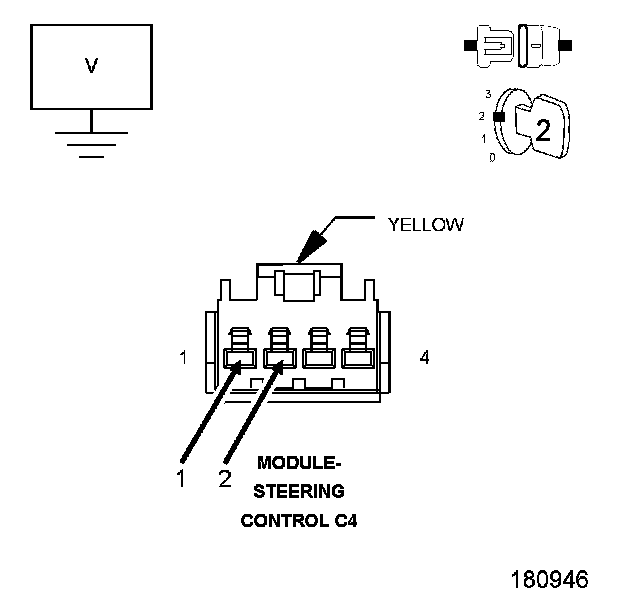

4. Measure the voltage of the (R63) Driver Squib 2 Line 2 and (R61) Driver Squib 2 Line 1 circuits between the Steering Control Module C4 harness connector and ground.

Is there any voltage on either circuit?

Yes

- WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

- Repair (R63) Driver Squib 2 Line 2 or (R61) Driver Squib 2 Line 1 shorted to battery.
- Perform the ORC VERIFICATION TEST. Occupant Restraint Controller (ORC) Verification Test.

No

- Go To 5

5. OCCUPANT RESTRAINT CONTROLLER

WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.

Repair

- Replace the Occupant Restraint Controller.
- Perform the ORC VERIFICATION TEST. Occupant Restraint Controller (ORC) Verification Test.

6. STORED ORC DTC
1. With the scan tool, record and erase all DTC from all Airbag System Modules.
2. If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.

WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

3. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
4. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
5. The following additional checks may assist you in identifying a possible intermittent problem.
6. Reconnect any disconnected components and harness connector.

WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

7. With the scan tool monitor active codes as you work through the following steps.
8. Wiggle the wiring harness and connectors of the related airbag circuit or component.
9. If codes are related to the Driver Airbag circuits, rotate the steering wheel from stop to stop.
10. If only stored codes return continue the test until the problem area has been isolated.
11. In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question.

Are any ACTIVE DTC present?

Yes

- Perform the appropriate diagnostic procedure. Testing and Inspection.

No

- No problem found at this time. Erase all codes before returning vehicle to customer.
