B1BAA

B1BAA-OCCUPANT CLASSIFICATION MODULE CONFIGURATION MISMATCH

For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.

- When Monitored:
While the CAN bus ignition status is IGN_RUN.

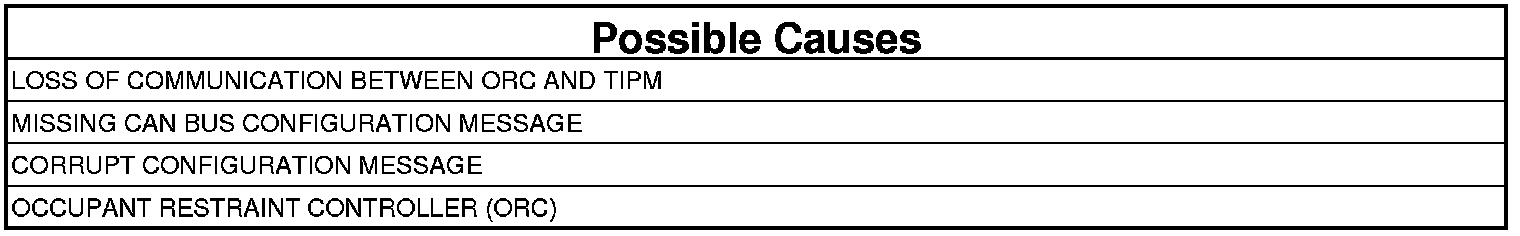

- Set Condition:
This DTC will set if the ORC is not configured for Occupant Classification Module (OCM) and the OCM is active on the CAN Bus. Note: Because all ORC's are originally configured for the OCM the ORC must learn the not equipped with OCM state from the TIPM.





1. CHECK FOR ACTIVE B1BAA-OCCUPANT CLASSIFICATION MODULE CONFIGURATION MISMATCH
1. With the scan tool, read Occupant Restraints Controller (ORC) DTC.

Does the scan tool display an active: B1BAA-OCCUPANT CLASSIFICATION MODULE CONFIGURATION MISMATCH DTC?

Yes

- Go To 2

No

- Go To 5

2. CHECKING FOR CORRUPT CONFIGURATION MESSAGE
1. With the scan tool, read Occupant Restraints Controller (ORC) DTC.

Does the scan tool display an active U1414-IMPLAUSIBLE/MISSING ECU NETWORK CONFIGURATION DATA DTC?

Yes

- Perform the U1414-IMPLAUSIBLE/MISSING ECU NETWORK CONFIGURATION DATA procedure. U1414.

No

- Go To 3

3. CHECKING FOR LOSS OF CAN BUS CONFIGURATION MESSAGE
1. With the scan tool, read Occupant Restraints Controller (ORC) DTC.

Does the scan tool display an active U1415-IMPLAUSIBLE/MISSING VEHICLE CONFIGURATION DATA DTC?

Yes

- Perform the U1415-IMPLAUSIBLE/MISSING VEHICLE CONFIGURATION DATA procedure. U1415.

No

- Go To 4

4. CHECKING FOR LOSS OF COMMUNICATION WITH THE TIPM
1. With the scan tool, read Occupant Restraints Controller (ORC) DTC.

Does the scan tool display an active: U0141-LOST COMMUNICATION WITH FRONT CONTROL MODULE (TOTALLY INTEGRATED POWER MODULE)?

Yes

- Perform the U0141-LOST COMMUNICATION WITH IPM (FCM/TIPM) procedure. U0141.

No

- Go To 5

5. VERIFYING STORED B1BAA-OCCUPANT CLASSIFICATION MODULE CONFIGURATION MISMATCH DTC
1. With the scan tool, record and erase all DTC from the Occupant Restraint Controller.
2. Turn the ignition off, and wait 15 seconds, then turn the ignition on.
3. Wait one minute, and read active and stored codes.

Does the scan tool display an active or stored B1BAA-OCCUPANT CLASSIFICATION MODULE CONFIGURATION MISMATCH DTC?

Yes

- WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

- WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.

- Replace the ORC.
- Perform the ORC VERIFICATION TEST. Occupant Restraint Controller (ORC) Verification Test.

No

- Test complete.
- Perform the ORC VERIFICATION TEST. Occupant Restraint Controller (ORC) Verification Test.
