B2214

B2214-(HVAC) CLIMATE CONTROL INTERNAL

For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.

- When Monitored:
With the ignition on.

- Set Condition:

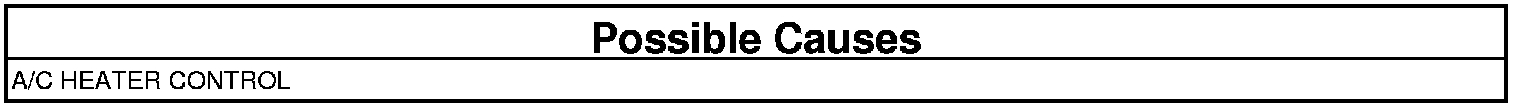

If the A/C Heater Control has an internal fault. This Diagnostic Trouble Code (DTC) has a maturing time of five seconds and a de-maturing time of 10 seconds. If the DTCs status changes from active to stored it will stay in memory for 100 ignition cycles.





NOTE: This DTC must be active for the results of this test to be valid. Do not perform this test if this DTC is stored.
REPLACE THE A/C HEATER CONTROL



Repair

- Replace the A/C Heater Control.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
