C2201

C2201-FDCM ECU INTERNAL (FDCM)

For a complete wiring diagram Refer to the Wiring Information.

- When Monitored:
With the ignition on.

- Set Condition:
The Final Drive Control Module has detected a failure internal to the controller.

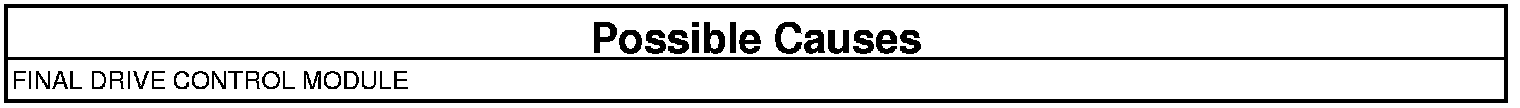

FINAL DRIVE CONTROL MODULE
1. The Final Drive Control Module has detected an internal failure.

View repair

Repair

- Replace the Final Drive Control Module.
- Perform the FDCM VERIFICATION TEST. FDCM Verification Test.
