HVAC

U0019-CAN B BUS

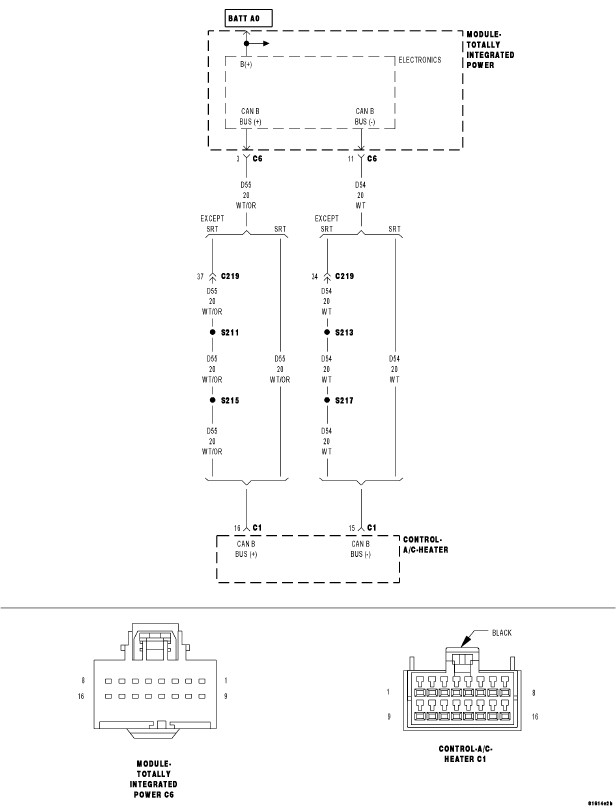

For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.

- When Monitored:
Continuously

- Set Condition:

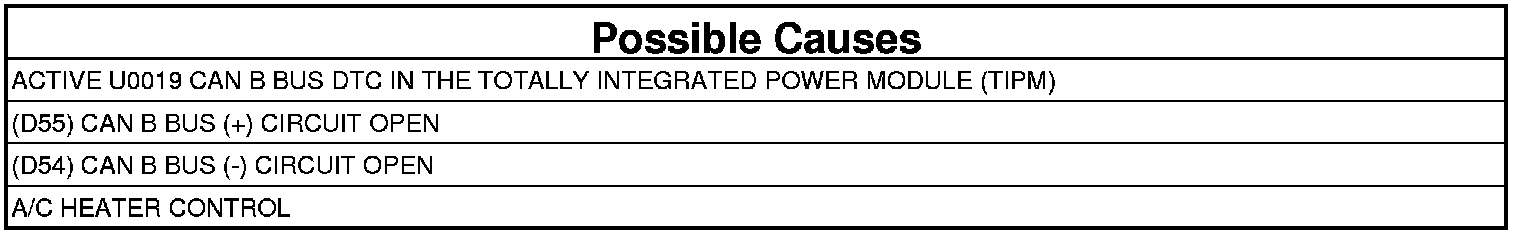

If the CAN B Bus (+) or CAN B Bus (-) circuit is open, shorted to voltage, or shorted to ground.





1. VERIFY DTC U0019-CAN B BUS IS ACTIVE
1. Turn the ignition on.
2. With the scan tool, read HVAC DTCs.

Does the scan tool display active: U0019-CAN B BUS?

Yes

- Go To 2

No

- If the DTC is stored, check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals.
- Perform the BODY VERIFICATION TEST. Body Verification Test

2. CHECK FOR ACTIVE CAN B BUS RELATED DTCS IN THE TOTALLY INTEGRATED POWER MODULE (TIPM)
1. With the scan tool, read Totally Integrated Power Module (TIPM) DTCs.

Does the scan tool display any active CAN B BUS related DTCs?

Yes

- Diagnose and repair the DTCs. Testing and Inspection

No

- Go To 3

3. CHECK (D55) CAN B BUS (+) CIRCUIT FOR AN OPEN




1. Turn the ignition off.
2. Disconnect the negative battery cable.
3. Disconnect the A/C Heater Control C1 harness connector.
4. Disconnect the Totally Integrated Power Module (TIPM) C6 harness connector.

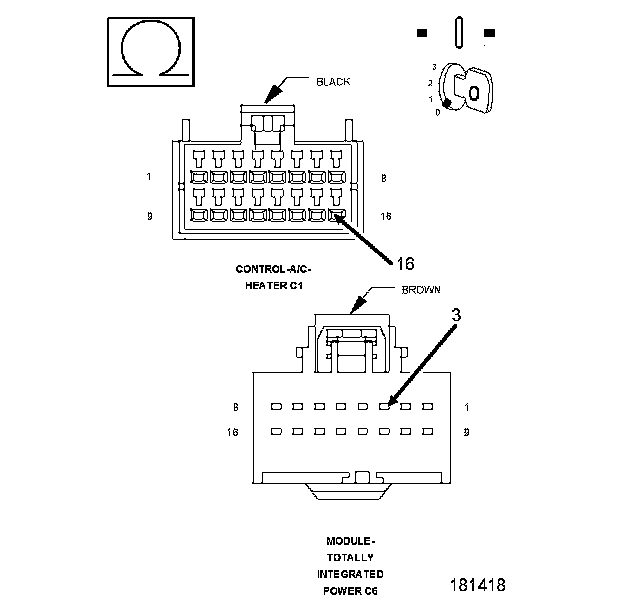

5. Measure the resistance of the (D55) CAN B Bus (+) circuit between the TIPM C6 harness connector and the A/C Heater Control C1 harness connector.

Is the resistance below 2.0 Ohms?

Yes

- Go To 4

No

- Repair the (D55) CAN B Bus (+) circuit for an open.
- Perform the BODY VERIFICATION TEST. Body Verification Test

4. CHECK (D54) CAN B BUS (-) CIRCUIT FOR AN OPEN

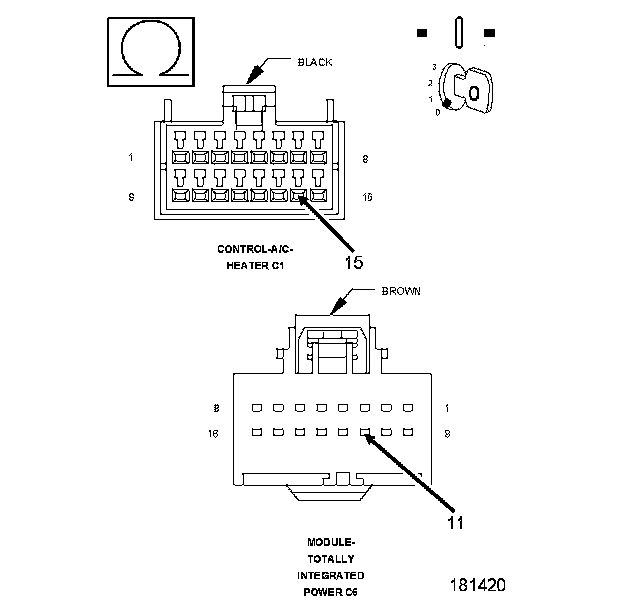

1. Measure the resistance of the (D54) CAN B Bus (-) circuit between the TIPM C6 harness connector and the A/C Heater Control C1 harness connector.

Is the resistance below 2.0 Ohms?

Yes

- Replace the A/C Heater Control.
- Perform the BODY VERIFICATION TEST. Body Verification Test

No

- Repair the (D54) CAN B Bus (-) circuit for an open.
- Perform the BODY VERIFICATION TEST. Body Verification Test
