Radiator Cooling Fan Motor
Radiator Cooling Fan Motor

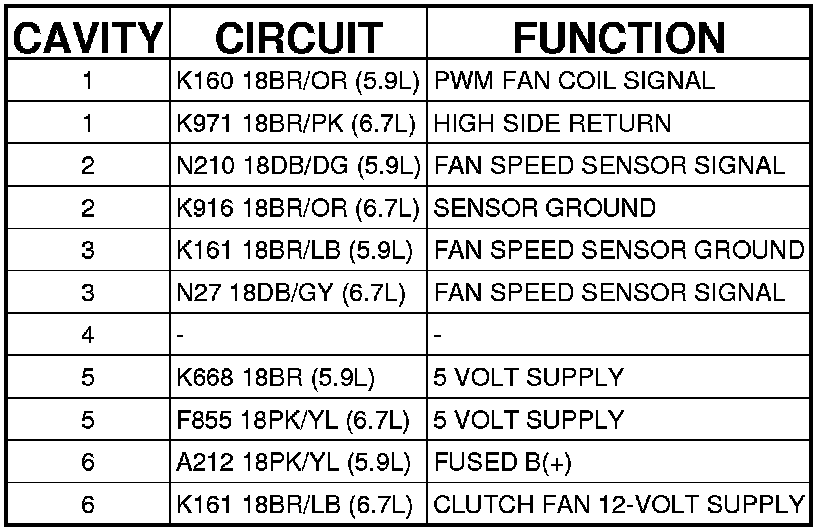

Connector (DIESEL) - (ENGINE) 6 WAY
DRIVE-FAN-RADIATOR (DIESEL) - (ENGINE) 6 WAY
