Wiper Control Module
Wiper Control Module

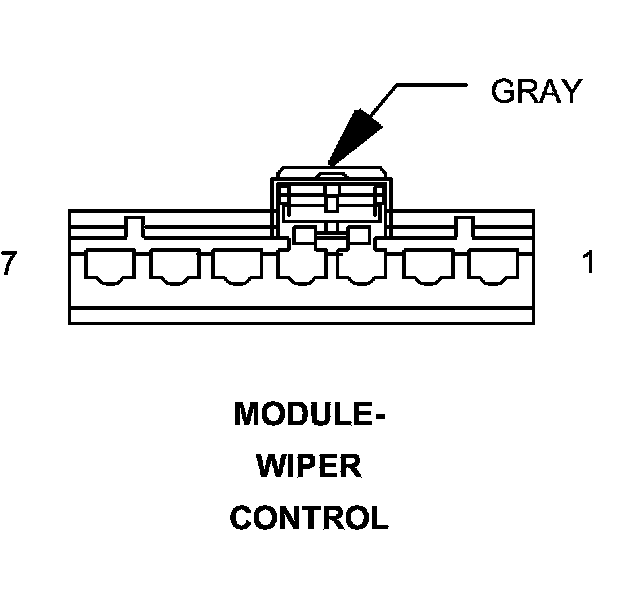

Connector - (INSTRUMENT PANEL) 7 WAY

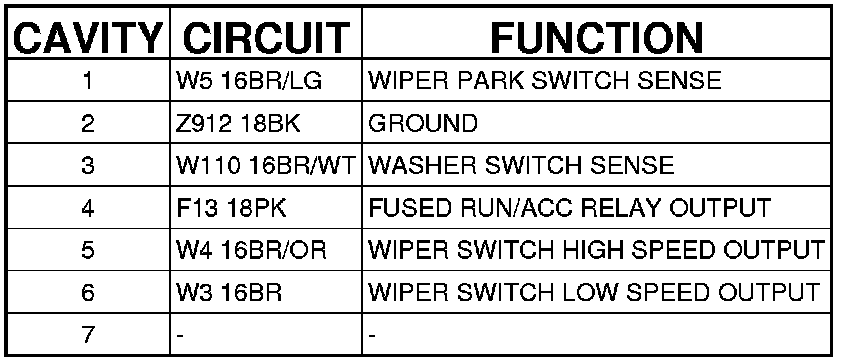

MODULE-WIPER CONTROL - (INSTRUMENT PANEL) 7 WAY
