Shifter Bezel - Removal
>>
Automatic
Automatic
REMOVAL
1.

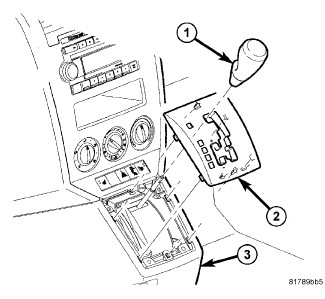

Pull up on shifter knob (1) and remove.
2.
Using trim stick C-4755 or equivalent, pry up on bezel (2) and remove from shifter pod (3).
