Front Door Mirror Flag - Removal
Front Door Mirror Flag - Removal
REMOVAL
1.

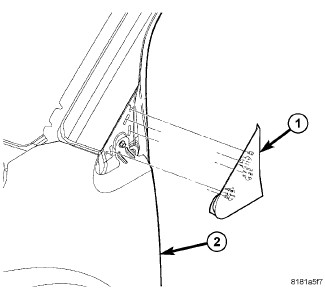

Using trim stick C-4755, pry up mirror flag (1) and remove from door (2).
