Front Lower Control Arm Shock Bushing - Removal

LOWER CONTROL ARM SHOCK BUSHING










1. Remove the shock Front Shock Absorber - Removal.

NOTE: Extreme pressure lubrication must be used on the threaded portions of the tool. This will increase the longevity of the tool and insure proper operation during the removal and installation process.

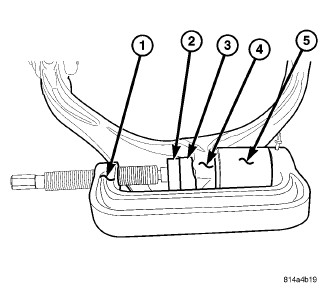

2. Install special tools to press the bushing (3) out of the lower control arm (4) using special tools C-4212F (Press) (1), 9653-1 (driver) (4) and 9653-2 (Receiver) (5).
