Exhaust Cross under Pipe - Installation

3.5L ENGINE





1. If removed, install bracket (2). Tighten bolts (1) to 29 Nm (21 ft. lb.).










2. Position cross under pipe.
3. Install cross under to rear maniverter bolts (5) and nuts (3). Tighten to 27 Nm (20 ft. lbs.).





4. Install cross under to front maniverter bolts and nuts. Tighten to 27 Nm (20 ft. lbs.).





5. Install cross under pipe bracket to cross under pipe bolt (1). Tighten to 27 Nm (20 ft. lbs.).










6. Install exhaust system pipe. Tighten flange nuts to 28 Nm (21 ft. lbs.).

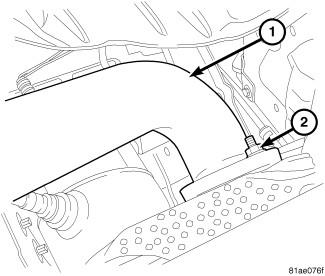

7. Install belly pan (2) and fasteners (1).
8. Lower vehicle.
9. Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary. Testing and Inspection.
10. Check the exhaust system for contact with the body panels. Make the necessary adjustments, if needed.
