Exhaust Pipe - Removal

2.7L/3.5L










WARNING: The normal operating temperature of the exhaust system is very high. Never attempt to service any part of the exhaust system until it is cooled. Special care should be taken when working near the catalytic converter. The temperature of the converter rises to a high level after a short period of engine operation time.

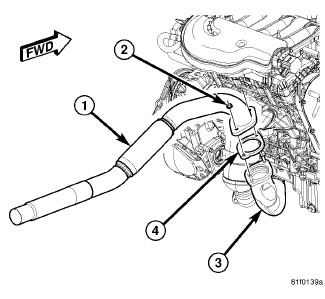

1. Raise vehicle on hoist.
2. Apply penetrating oil to exhaust pipe band clamp, and fasteners (2).
3. Loosen band clamp for resonator/pipe assembly.
4. Remove exhaust pipe mounting nuts (2) at cross under pipe (3).
5. Remove exhaust pipe (1) and gasket from vehicle.
6. Discard band clamp.
