Front Bumper - Removal

REMOVAL





1. If necessary, remove the charge air cooler, Charge Air Cooler and Hoses - Removal.

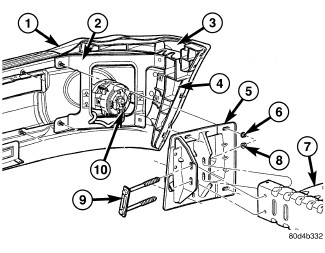

2. Using a grease pencil or equivalent, mark the position of the bumper support bracket (5) on the frame rail tip (7) to aid installation.
3. Disconnect the fog lamp electrical connector at the left frame rail.
4. Support the bumper with a suitable lifting device.
5. Remove the bumper support bracket (5) nuts and bolts (8 and 9) and remove bumper.
