Remote Start Antenna - Installation

INSTALLATION






NOTE: The WIN antenna is located behind the left side of the storage bin.

1. Route the antenna wire behind the radio toward the drives side of the vehicle.
2. Insert the right side of the Wireless Ignition Node (WIN) antenna module first, then push firmly on the right side to engage holding clip.






NOTE: The WIN antenna is located behind the left side of the storage bin.

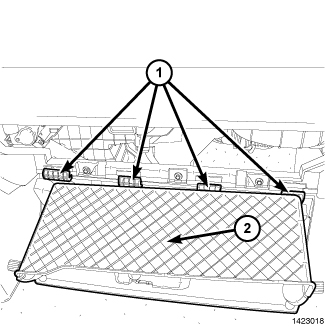

3. Install the instrument panel storage bin Instrument Panel Bin - Installation.

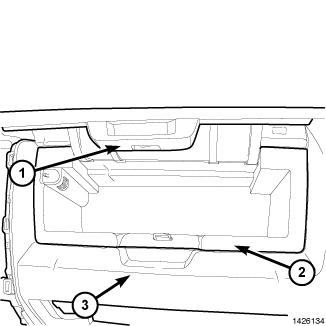

4. Install the glove box Instrument Panel Glove Box - Installation.
5. Install the radio Radio - Installation.





6. Connect the antenna to the WIN module.

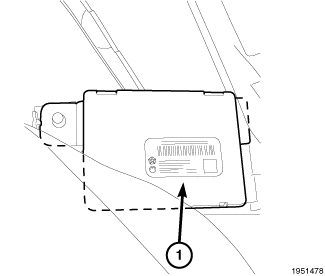

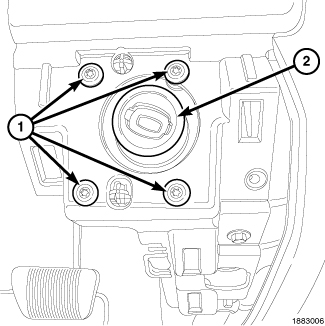

7. Install the Wireless Ignition Node (WIN) .
8. Disconnect the negative battery cable.
