Brake and/or Accelerator Pedals - Description

DESCRIPTION










NOTE: The brake pedal is serviced as a complete assembly including accelerator pedal and the bracket.

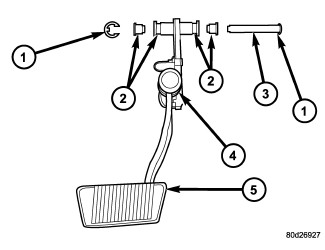

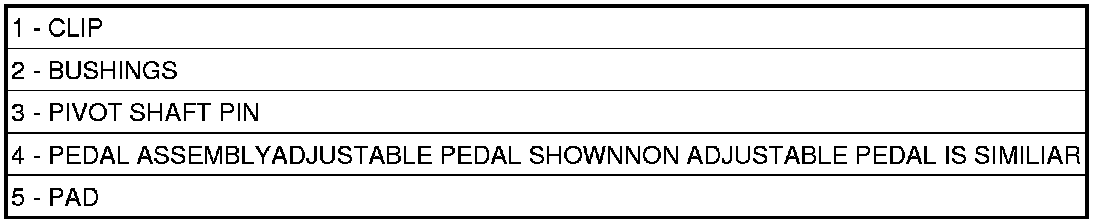

A suspended-type brake pedal is used. The pedal is attached to the pedal support bracket with a pivot shaft pin (3) and bushings (2). If the bushings (2) become dry a spray lubricant can be used to eliminate noises. The booster push rod is attached to the pedal with a clip (1). The pedal (4), bushings (2), pivot pin (3) and support bracket are not serviceable components.
