Rear - Dual Rear Wheels (DRW)

REAR DUAL WHEELS





1. Raise and support the vehicle
2. Remove the tire and wheel assembly.
3. Remove the disc brake caliper, Disc Brake Caliper - Removal.
4. Remove the caliper adapter bolts.
5. Remove the rear axle shaft from the housing on dual rear wheels, Removal.

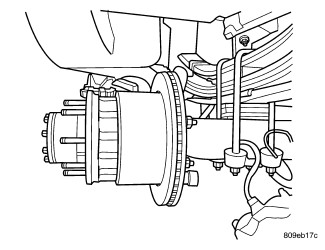

6. Remove the hub and rotor assembly.

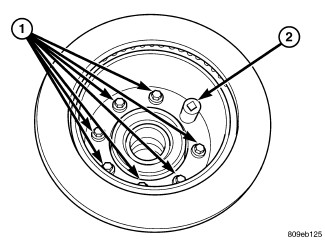

7. Disassemble the hub from the rotor if needed by removing the bolts (1).
