Steering Column Opening Cover - Removal

REMOVAL

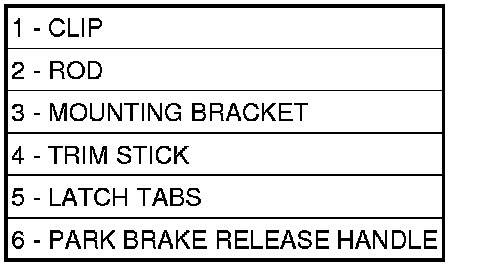

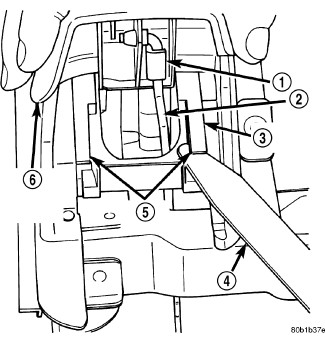

1. Remove the park brake release handle. Parking Brake Lever - Removal

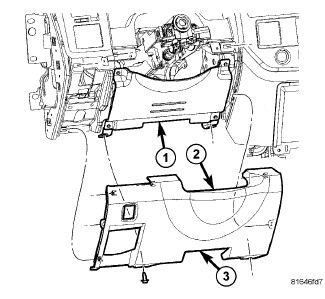

2. Remove the two screws that secure the bottom of the steering column opening cover (3) to the instrument panel.
3. Using a trim stick C-4755 or equivalent, release the two retainer clips that secure the top of the steering column opening cover (2) to the instrument panel and remove the cover.

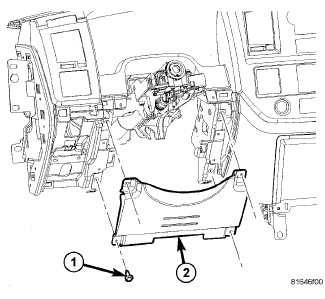

4. Remove the screws and remove the knee blocker.
