Air Cleaner Body - Removal

REMOVAL





1. Disconnect both negative battery cable.

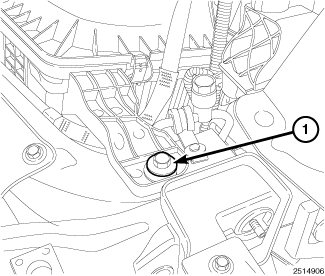

2. Remove the intake air housing bolt (1).

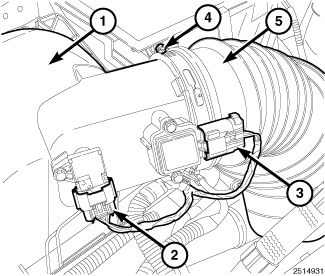

3. Disconnect the Mass Air Flow (MAF) (3) sensor.
4. Disconnect the TBAP (2) sensor.
5. Loosen clamp (4) and disconnect the intake air tube (5) from the air cleaner body (1).
6. Lift up and remove air cleaner body (1).

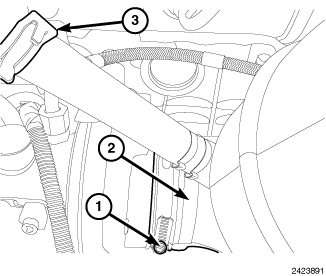

Intake Air Tube





1. Disconnect the breather hose (3).
2. Loosen the clamp (1) and remove the outlet tube (2) from the turbocharger.
