Rear

REAR





1. Raise and support the vehicle, Maintenance.
2. Remove the wheel and tire assembly.
3. Remove the brake caliper, caliper adapter and rotor, Brake Rotor - Removal.

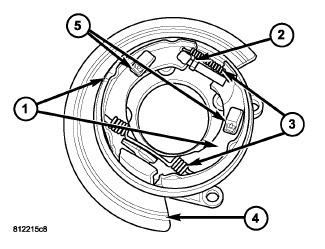

4. Using appropriate tools, remove the spring (3) at parking brake adjuster (2).
5. Spread the parking brake shoes (1) apart enough to remove the adjuster (may need to back off adjustment), then remove the adjuster (2).





6. Rotate the axle around until the wheel stud (1) lines up with the opening where the adjuster was removed.
7. Press the stud (1) from the hub using Ball Joint Press C-4150A (3).
8. Remove the stud (1) from the rear of the hub flange. It may be necessary to work the hub flange back and forth to ease stud removal.
