Instrument Panel End Cap - Installation

INSTALLATION

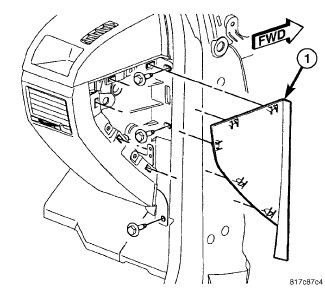

NOTE: Right hand shown. Left hand similar.

1. Place end cap clips over instrument panel inner.
2. Tap on end cap clip locations ensuring proper seat.
