Installation

6.4L





1. Clean the Manifold Absolute Pressure (MAP) sensor mounting hole at rear of intake manifold.

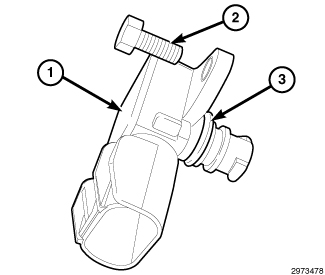

2. Check the condition of the MAP sensor O-ring seal (3) and replace if necessary.
3. Position the MAP sensor (1) into intake manifold.
4. Rotate the MAP sensor 1/4 turn clockwise for installation.
5. Install the MAP sensor retaining bolt (2) and tighten to 3 Nm (25 in. lbs.).

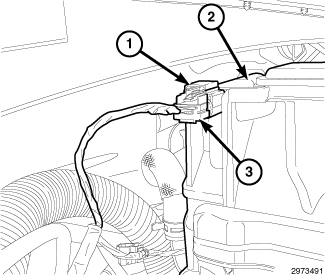

6. Connect the electrical connector (3) to the MAP sensor (1).
