Front Door

FRONT DOOR

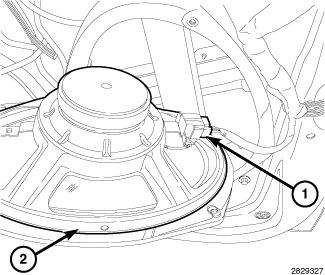

1. Connect the wire harness (1) connector to the speaker (2).





2. Position the speaker (2) to the door.

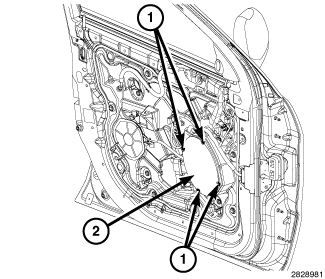

3. Install and tighten the mounting fasteners (2).

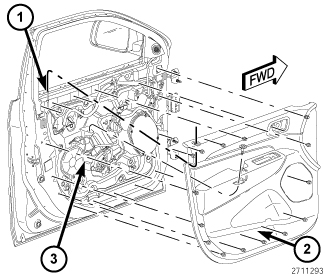

4. Install the front door trim panel Front Door Trim Panel - Installation.
5. Connect the battery negative cable.
