Subwoofer

SUBWOOFER





1. Disconnect the negative battery cable.

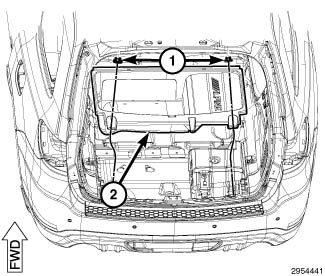

2. Remove the load/storage floor Load Floor - Removal.





3. Remove the subwoofer mounting retainers.

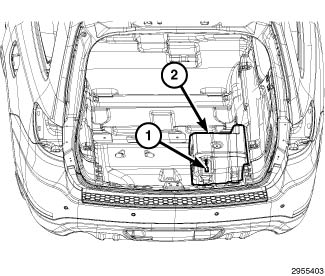

4. Disconnect the subwoofer electrical connector (1).
5. Remove the subwoofer (2).
