Front Bumper - Removal

REMOVAL





1. Disconnect and isolate the negative battery cable.
2. Remove the radiator grille assembly. Grille - Removal

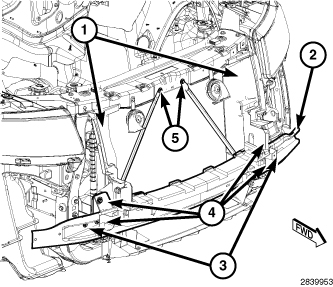

3. Remove the fasteners (5) that secure the hood latch assembly and the upper radiator support cross bracing.
4. Remove both the side plastic air deflectors (1).





5. Release the clips and position aside the power steering cooler assembly, if equipped.
6. Release the clips securing the headlamp electrical harness and position the harness aside.

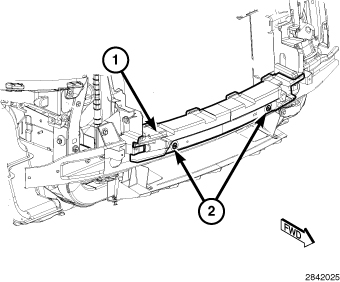

7. Remove the push-pin type retainers (2) and remove the front bumper isolator pad (1).





8. Remove the four bolts (4) securing the bumper beam to the vehicle frame
9. Remove the outer two fasteners (3) that secure the bumper beam to the radiator closure panel and remove the beam (2).
10. Remove the cross bracing from the bumper beam and any miscellaneous parts as needed.
