Exterior Handle - Installation

INSTALLATION

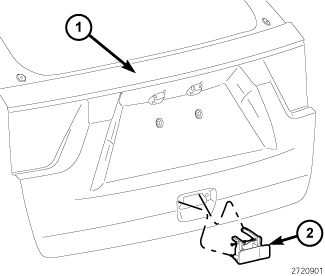

1. Position the latch handle (2) onto the outside of the liftgate (1).

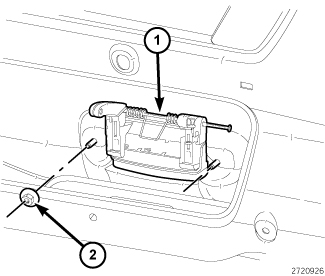

2. Working through the clearance hole in the inside of the liftgate panel, install the two nuts (2).
3. Tighten the nuts to 6 Nm (55 in. lbs.).





4. Connect the electrical connectors.

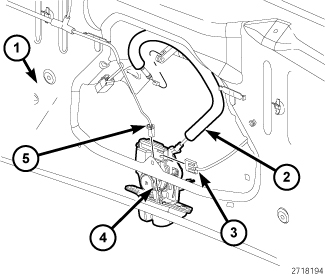

5. Connect the latch cable (2) to the exterior handle.

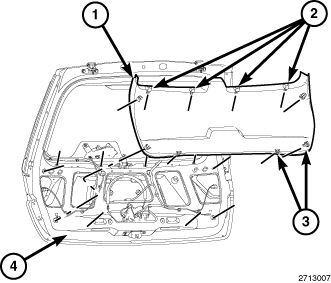

6. Install the lower trim panel (2) onto the inside of the liftgate Liftgate Trim Panel - Installation.
7. Connect the battery negative cable.
