Shifter Bezel - Installation

INSTALLATION





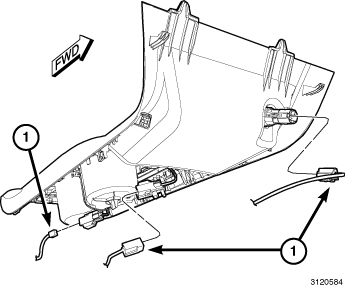

1. Connect the electrical connectors (1) to the shift bezel.

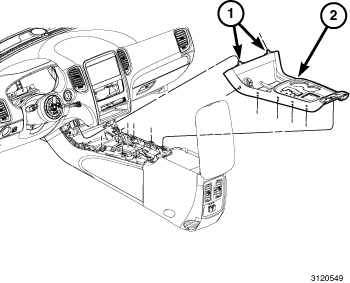

2. Position the console bezel (2) back into place with the front tabs (1) under the center bezel and seat the clip fasteners fully.





3. Replace the yellow stamped clip (2) into the knob (1). The tab orients toward the outside of knob, not the centerline. The flat side of the clip (opposite the tab), should be on the inside, toward the shaft.

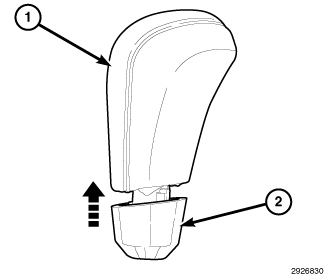

4. Align the ribs on knob (1) with slots in the chrome shroud (2) and seat the shroud fully. Angle on the shroud must match the angle on the knob before snapping in place.





5. Place the gear selector lever into the Park position.

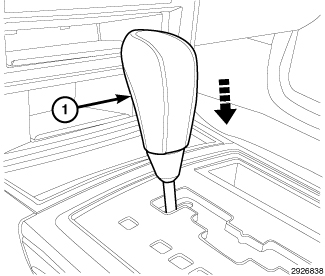

6. Install the knob (1) onto the shift shaft and seat fully.
