Upper Cover - Removal

REMOVAL

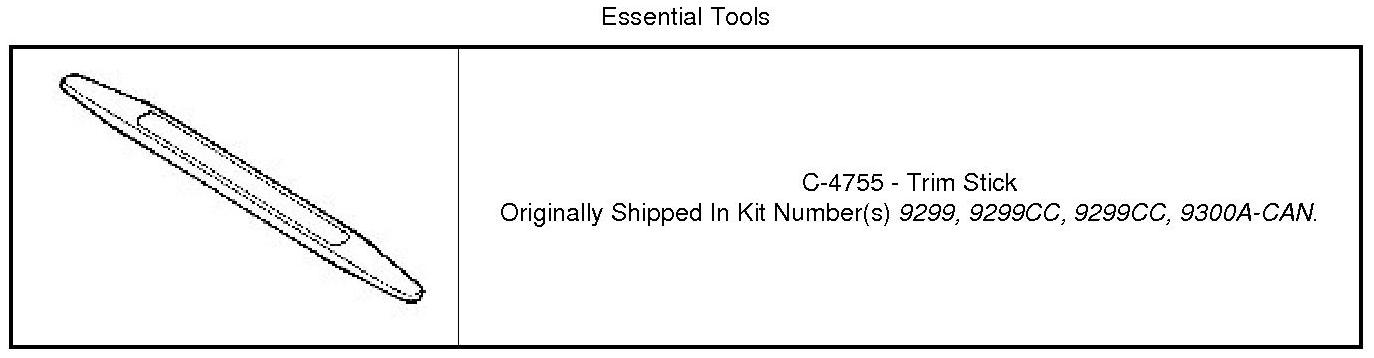

Special Tools:










1. Remove the D-pillar trim. D-Pillar Trim Panel - Removal

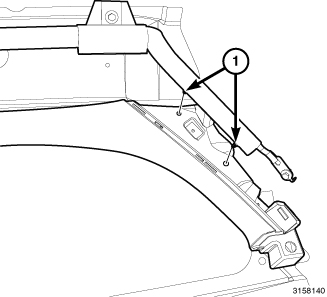

2. Release the pushpins (1) and separate the air bag from the trim.





3. Remove the trim screws (4).
4. Using a trim stick or equivalent, disengage the retaining clips that secure the side upper headliner trim (2) to the body.
5. Release the tether from the trim and remove the headliner trim (2).
