Second Row

REMOVAL






NOTE: 40% seat cushion shown, 60% seat cushion similar.

1. Remove the rear seat. Service and Repair
2. Remove the side cover (2).
3. Disconnect the electrical connectors, if equipped.
4. Remove the seat back pivot bolts (1).

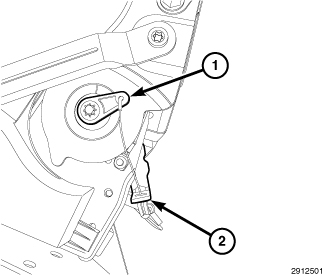

5. Disconnect the cable (1) and separate the housing from the seat back frame (2).
6. Remove the seat cushion assembly from the seat back frame assembly.

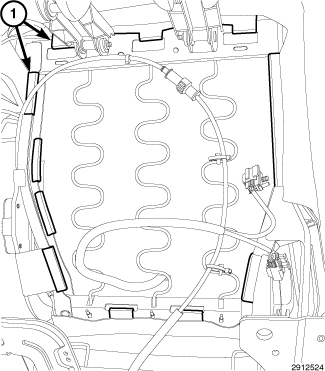

7. Release the J-straps (1).





8. Open the cover (1) and expose the strip fasteners (2).
9. While pulling down on the seat cushion foam (3), slide the strip fasteners (2) out of the foam and release.
