Heated Seat Module - Installation

INSTALLATION






CAUTION: Properly align the Heated Seat Module (HSM) retaining tabs to the bracket, prior to engagement. Failure to follow these instructions may result in damage to the HSM.

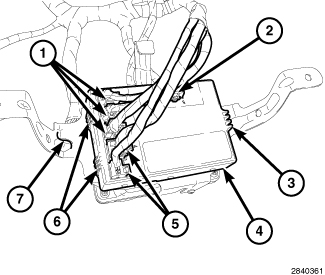

1. Position the Heated Seat Module (HSM) (4) to the bracket (7) and engage the two retaining tabs (6). Make sure the retaining tabs are correctly engaged to the bracket.
2. Engage the HSM retaining tab (3) to the bracket. Make sure the retaining tab is fully engaged to the bracket.
3. Connect the electrical connectors (1, 2 and 5) to the HSM.

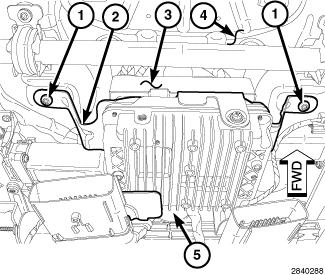

4. Position the bracket (2) containing the Heated Seat Module (HSM) (3) to the underside of the seat cushion frame (4) and engage the metal bracket retaining tab (5) to the seat cushion frame.
5. Install the two bolts (1) that secure the bracket to the underside of the seat cushion frame. Tighten the bolts securely.
6. Install the seat Service and Repair
7. Reconnect the negative battery cable.
8. Verify proper heated seat system operation.
