Third Row Seat - Installation

INSTALLATION

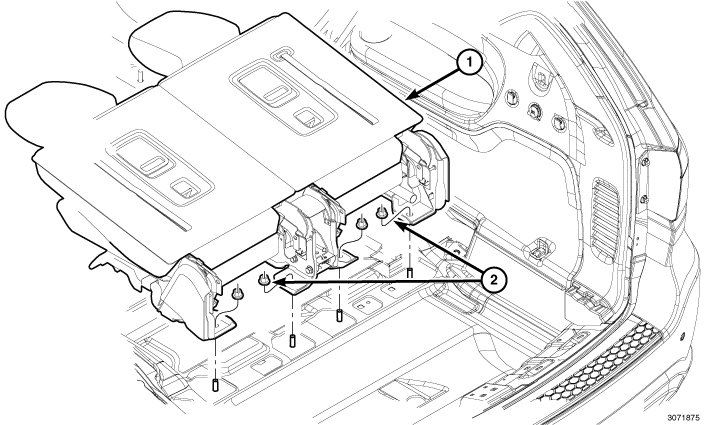

1. Install the seat assembly through the liftgate opening and position over the rear mounting studs.
2. Install the four nuts (2) and tighten to 50 Nm (37 ft. lbs.).





3. Install the front bolts (1) and tighten to 50 Nm (37 ft. lbs.).
4. Position the trim caps (2) back into place and seat fully.
