Front Blower Motor - Description

DESCRIPTION

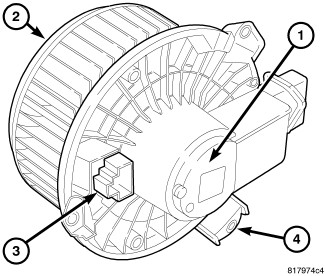

The blower motor (1) is used to control the velocity of air moving through the HVAC housing assembly by spinning the blower wheel (2) at the selected or programmed speed (depending on control system application).

The blower motor is a 12-volt, Direct Current (DC) motor that is mounted within a plastic housing that has integral wire harness connector (3), integral mounting tabs (4) and a squirrel cage-type blower wheel that is secured to the blower motor shaft. The blower wheel is positioned within the air inlet housing on the passenger side of the HVAC housing assembly.
