Rear

INSTALLATION

NOTE: Take the proper precautions to protect the face of the rear A/C-heater control and bezel from cosmetic damage while performing this procedure.

NOTE: Automatic Temperature Control (ATC) shown. Manual Temperature Control (MTC) similar.

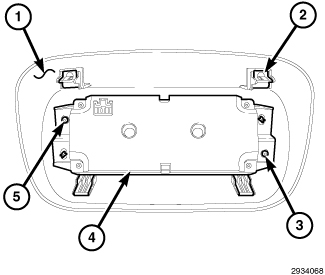

1. Install the rear A/C-heater control (4) into the bezel (1).
2. Install the two screws (3 and 5) that secure the rear A/C-heater control to the bezel. Tighten the screws securely.
3. Position the rear A/C-heater control and bezel to the headliner and connect the wire harness connector to the back of the rear control.
4. Using hand pressure, install the rear control bezel onto the headliner. Make sure the four retaining clips (2) are fully seated.
5. Reconnect the negative battery cable.
6. Calibrate the front and rear A/C systems as follows:
- Initiate the Actuator Calibration function using a scan tool
- Verify that the Actuator Calibration of the front A/C-heater control has passed. Correct any errors before proceeding if the Actuator Calibration has not passed.
- Rotate the rear temperature control knob counter clockwise to the full cold position. Allow the control to remain in the full cold position for 5 seconds.
- Rotate the rear temperature control knob clockwise to the full hot position. Allow the control to remain in the full hot position for 5 seconds.
- Calibration is now complete. Verify proper front and rear heating-A/C system operation.
