Fog Lamp - Removal

LAMP





1. Disconnect and isolate the battery negative cable.
2. Reach through the outboard opening in the front of the front wheel house splash shield to access the back of the front fog lamp.

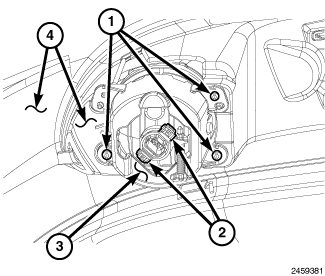

3. Disconnect the headlamp and dash wire harness connector from the front fog lamp bulb (2) connector receptacle.
4. Remove the three screws (1) that secure the front fog lamp mounting bracket (3) to the fog lamp bezel on the back of the lower front fascia (4).
5. Remove the front fog lamp from the vehicle.
