Rear Blower Motor Power Module - Removal

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the right quarter trim panel Quarter Trim Panel - Removal.

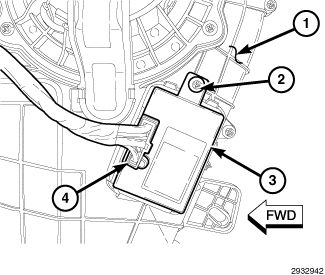

3. Disconnect the wire harness connector (4) from the rear blower motor power module (3).
4. Remove the screw (2) that secures the rear blower motor power module to the rear heater-A/C housing (1).
5. Disengage the rear blower motor power module from the rear heater-A/C housing and remove the module.
