Rear Hub And Bearing - Installation

INSTALLATION

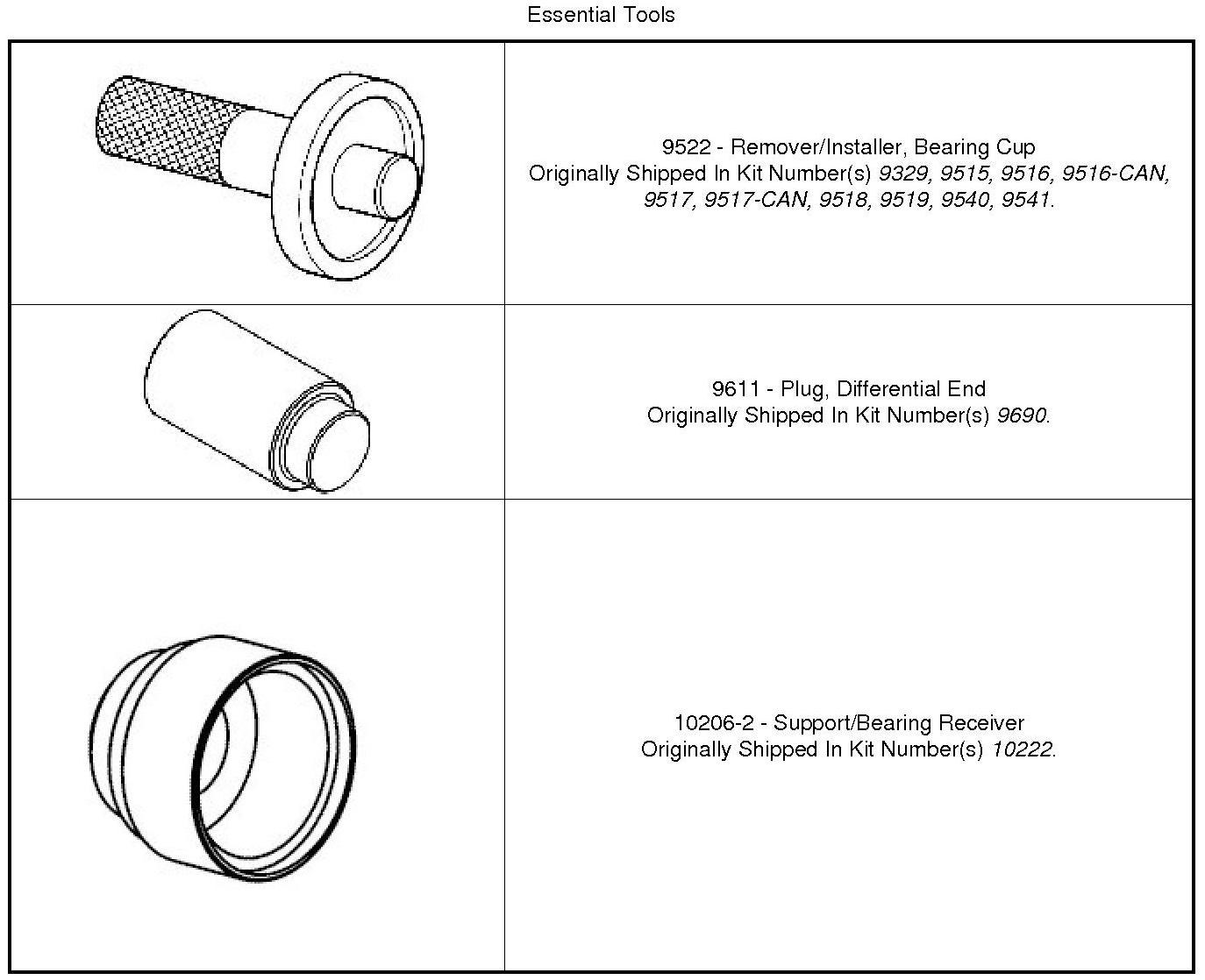

Special Tools:










1. Press the bearing (1) into the knuckle (3) using Bearing Cup Remover/Installer (2) and a support plate or block (4).





2. Install the retaining ring (2) in knuckle (1).





3. Press the hub (1) into the bearing/knuckle using Differential End Plug (2) and Hub/Knuckle Support Installer/Remover (3).
4. Install the knuckle to the vehicle Rear Suspension Knuckle - Installation.
5. Remove the support and lower the vehicle.
