Front Hub And Bearing - Installation

4x2

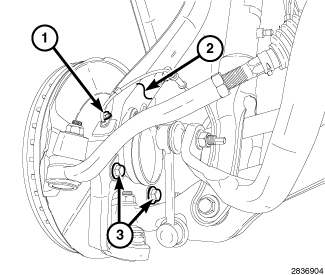

1. Position the hub bearing into the knuckle (2), install the 3 bolts (3) and tighten to 105 Nm (78 ft. lbs.).
2. Install the wheel speed sensor into the knuckle (2), install the sensor mounting bolt (1) and tighten to 11 Nm (95 in. lbs.).
3. Install the brake rotor Brake Rotor - Installation.
4. Install the wheel and tire assembly Service and Repair
5. Remove the support and lower the vehicle.
