Remote Start Antenna - Installation






INSTALLATION





1. Route the cable behind the center stack of the instrument panel.

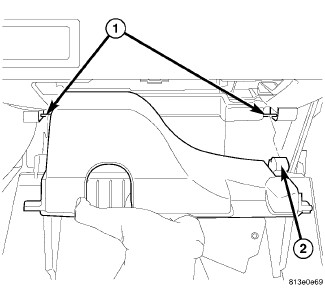

2. Remove the retainers (1) from the remote start antenna (2).





3. Through the glove box opening (2) install the two antenna harness clips (1) from the back of the instrument panel.





4. Clip the two WIN antenna (2) harness clips (1) to the support.





5. Through the steering column opening connect the Wireless Ignition Node (WIN) antenna connector (1) from the WIN (2).





6. Install the instrument panel center bezel Instrument Panel Bezel - Installation.





7. Install the glovebox liner.
8. Install the glovebox Instrument Panel Glove Box - Installation.





9. Install the right side knee blocker support bracket.
10. Install the steering column opening cover Steering Column Opening Cover - Installation.
11. Install the drivers side silencer pad.






NOTE: Passenger side shown, drivers side similar.

12. Install the drivers cowl trim panel Cowl Trim Panel - Installation.
13. Install the drivers scuff plate Scuff Plate - Installation.
14. Connect the negative battery cable.
