Front Stabilizer Bar Link - Installation






INSTALLATION

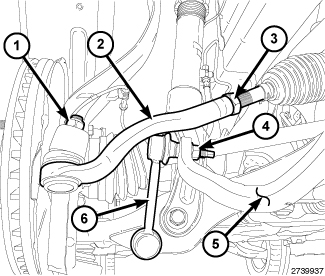

1. Position the stabilizer link (6) to the vehicle.
2. Install the stabilizer link upper nut (4) and tighten to 122 Nm (90 ft. lbs.).





3. Install the stabilizer link lower nut (4) and tighten to 122 Nm (90 ft. lbs.).
4. Install the tire and wheel assembly Service and Repair.
5. Remove the support and lower the vehicle.
