Rear Suspension - Description

DESCRIPTION





The rear suspension is an independent suspension system.

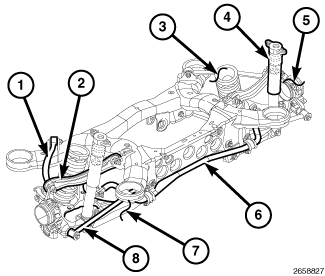

The rear suspension is comprised of :

- Camber links (2)
- Coil springs (3)
- Knuckles (5)
- Lower control arms (7)
- Shock absorbers (4)
- Stabilizer bar with links (6)
- Tension links (1)
- Toe links (8)

CAUTION: Suspension components with rubber/urethane bushings should be tightened with the vehicle at normal ride height. It is important to have the springs supporting the weight of the vehicle when the fasteners are torqued. This will maintain vehicle ride comfort and prevent premature bushing wear.
