Second Row, Stow-n-Go

REMOVAL






NOTE: On leather trimmed seats, the back cover can be removed from the back foam pad. On cloth trimmed seats, the seat back cover does not separate from the back foam pad

1. Fold the headrest into the downward position.

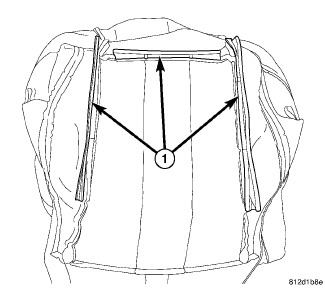

2. Untuck the seat back cover under the headrest and detach the hook and loop strips (1) from each other.
3. Remove both armrests, Armrest - Removal.
4. Remove the side shields from the seat, Seat Cushion Side Shields - Removal.
5. Remove the seat back panel, Seat Back - Removal.





6. Disengage the seat back J-straps (1, 2, 3, 4) from the seat frame.





7. Lift the headrest (1) back into it's upright position.
8. Lift seat back cover (2) and foam straight up from the seat back frame and over the headrest (1).





9. If required, separate the seat back cover from the foam by disengaging the locking strips (1) from the keepers.
