Second Row, Stow-n-Go

INSTALLATION





1. If removed, install the seat cushion cover onto the foam and engage the locking strips to the keepers.
2. If equipped, connect the heated seat harness.

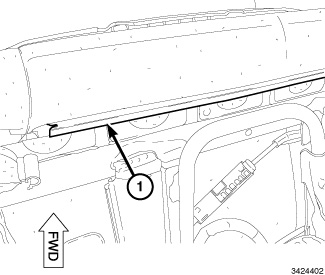

3. Position the seat cushion cover/foam (1) to the cushion frame.
4. Install the retaining clip (1) near the handle. Repeat on the opposite side of the seat.
5. Push/pull the seat cushion cover/foam (1) rearward under the seat back/recliner.





6. Pull the rear portion of the seat cushion (1) forward and attach the three J-clips securing the rear portion of the seat cushion (1) to the seat frame, located in the rear underside edge of the seat.





7. Engage the J-straps (2) that secure the seat cushion cover to the seat frame (1), located under the side of the seat. Repeat on the opposite side.





8. Attach the J-clip (1) securing the seat cushion to the seat frame, located in the front underside edge of the seat.





9. Attach the J-clip (1) securing the seat cushion to the seat frame, located in the front underside of the seat. Repeat on the opposite side.





10. Install the retaining clip (1) near the J-clip (2) located in the front underside of the seat. Repeat on the opposite side.
11. Install the seat cushion side shields, Seat Cushion Side Shields - Installation.
