Seat - Installation

INSTALLATION

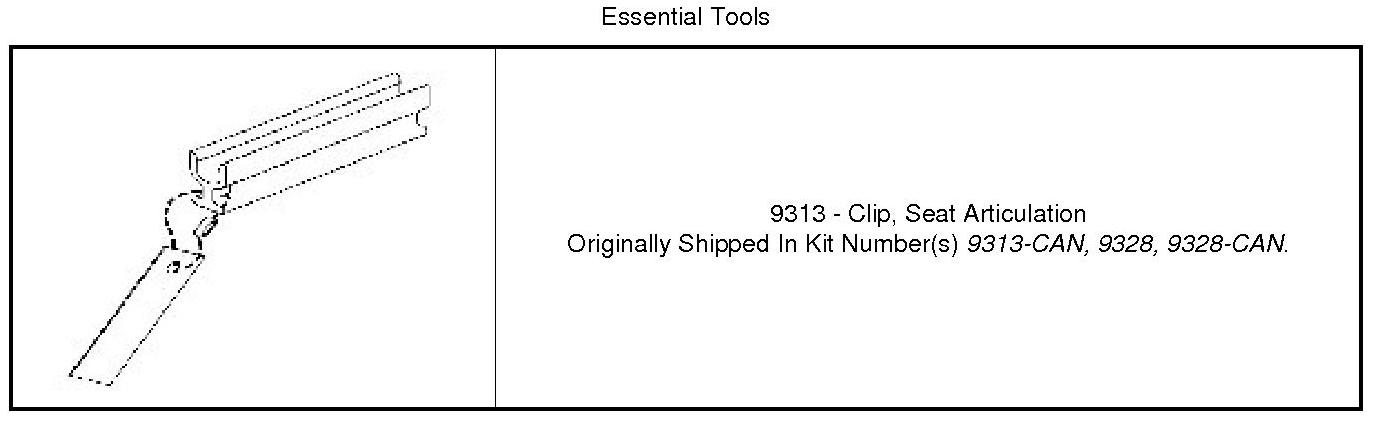

Special Tools:










1. Position the second row seats (2) into the vehicle as required.
2. Install the three nuts (1) that secure each seat to the floor. Tighten the nuts to 54 Nm (40 ft. lbs.).





3. Remove (1) from the seat shaft.
4. Lock seat down onto the rear strikers.





5. Slide the load floor door trim (1) closed and seat the retaining tab into the bracket (2) fully.
