Instrument Panel Bezel - Removal
REMOVAL
Special Tools:
1. Disconnect the negative battery cable.
2. Using trim stick or equivalent, remove the instrument panel outlet vent/trim (1), Air Outlet - Removal.
3. Using trim stick or equivalent, remove the instrument panel trim (1) located left of the center stack bezel.
CAUTION: Do not disconnect/connect the ICSS/switch bank without referring to the appropriate procedure. The harness connector is very fragile and could be damaged if not properly removed/installed.
4. Remove the switch-bank (1) from the I/P (4),Instrument Cluster Switch Pod - Removal.
CAUTION: Do not disconnect/connect the ICSS/switch bank without referring to the appropriate procedure. The harness connector is very fragile and could be damaged if not properly removed/installed.
5. Using trim stick or equivalent, disengage the snap retainers securing the center bezel (1) to the I/P. Do not remove at this time.
6. Disconnect the integrated center stack screen, Integrated Center Stack Screen Module - Removal.

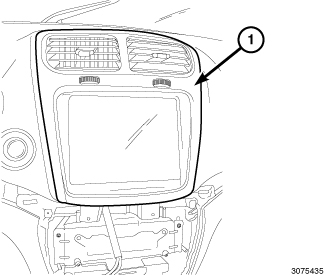

7. Remove the center stack bezel (1).
