Water Pump - Removal

3.7L ENGINE










1. Disconnect negative battery cable.
2. Drain cooling system Service and Repair.
3. If water pump is being replaced, do not unbolt fan blade assembly from thermal viscous fan drive.
4. Remove two fan shroud-to-radiator screws. Disconnect the coolant overflow hose.
5. Remove upper fan shroud and fan blade/viscous fan drive assembly from vehicle.
6. After removing fan blade/viscous fan drive assembly, do not place thermal viscous fan drive in horizontal position. If stored horizontally, silicone fluid in viscous fan drive could drain into its bearing assembly and contaminate lubricant.

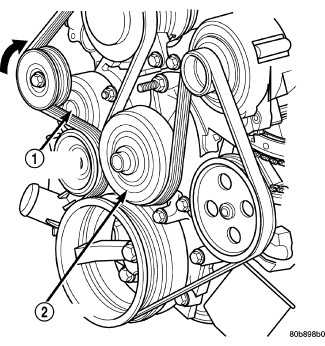

7. Remove accessory drive belt (1) Serpentine Accessory Drive Belt - Removal.
8. Remove lower radiator hose clamp and remove lower hose at water pump.
9. Remove seven water pump mounting bolts and one stud bolt.

CAUTION: Do not pry on the water pump at the timing chain case/cover. The machined surfaces may be damaged resulting in leaks.

10. Remove water pump and gasket. Discard gasket.
