Engine Coolant Temperature Sensor - Removal
3.7L ENGINEWARNING: Hot, pressurized coolant can cause injury by scalding. Cooling system must be partially drained before removing the coolant temperature sensor. 1.
Partially drain the cooling system.
2.

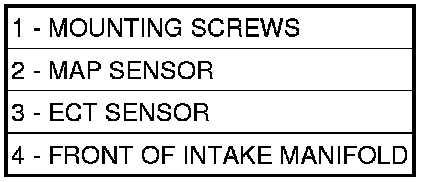

Disconnect the electrical connector from the ECT sensor (3).
3.
Remove the sensor from the intake manifold (4).
