U1415

U1415-00-IMPLAUSIBLE/MISSING VEHICLE CONFIGURATION DATA -





For a complete wiring diagram,refer to the Wiring Information.

Theory of Operation
When powered, the Occupant Restraint Controller (ORC) performs an internal self test. The repair of this fault centers on verifying that the ORC is configured correctly for the vehicle's restraint system components.
- When Monitored:
The ORC checks for a configuration message from the Totally Integrated Power Module (TIPM) at power-up and initialization.

- Set Condition:
This Diagnostic Trouble Code (DTC) sets when the configuration message is not equal to the programmed configuration or when the configuration message is missing for 7 seconds. Once set, this DTC is latched for a power cycle.





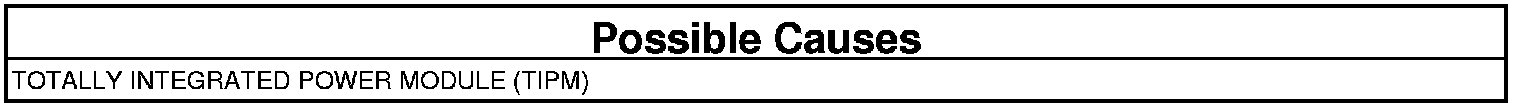

Always Perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Restraints System Pre-Diagnostic Procedure.

1. VERIFY ACTIVE ORC DTC

NOTE: Ensure the battery is fully charged.

1. Turn the ignition on.
2. With the scan tool, read ORC DTCs.

Does the scan tool display an active U1415-00-IMPLAUSIBLE/MISSING VEHICLE CONFIGURATION DATA - DTC?

Yes

- Go To 2

No

- Repair complete.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

2. VERIFY ACTIVE TIPM DTC
1. With the scan tool, read TIPM DTCs.

Does the scan tool display any active TIPM DTCs?

Yes

- Perform the appropriate TIPM diagnostic procedures. Testing and Inspection.

No

- Replace the Totally Integrated Power Module (TIPM).
- Perform the BODY VERIFICATION TEST. Body Verification Test.
