Removal

REMOVAL





1. With vehicle in neutral, position vehicle on hoist.
2. Remove wheel and tire assembly.

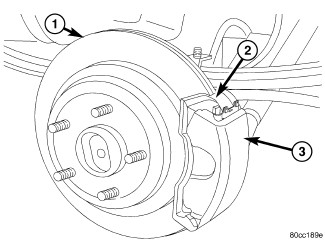

3. Remove brake caliper (3), adapter (2) and rotor (1).





4. Remove differential housing cover and drain lubricant.
5. Rotate differential case so pinion mate shaft lock screw is accessible. Remove lock screw (1) and pinion mate shaft (2) from differential case.





6. Push axle shaft (2) inward and remove C-lock (1) from the axle shaft.





7. Remove axle shaft (1) carefully to prevent damage to the shaft bearing and seal in the axle tube.
