Wheel Alignment

WHEEL ALIGNMENT

NOTE: All alignment specifications are in degrees.

NOTE: All wheel alignments are to be set with the vehicle at curb height Service and Repair

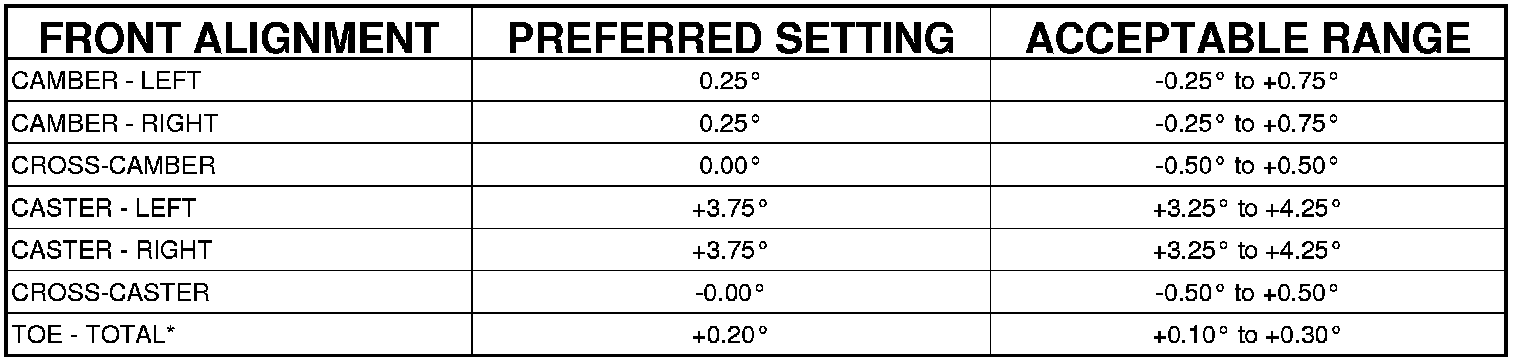

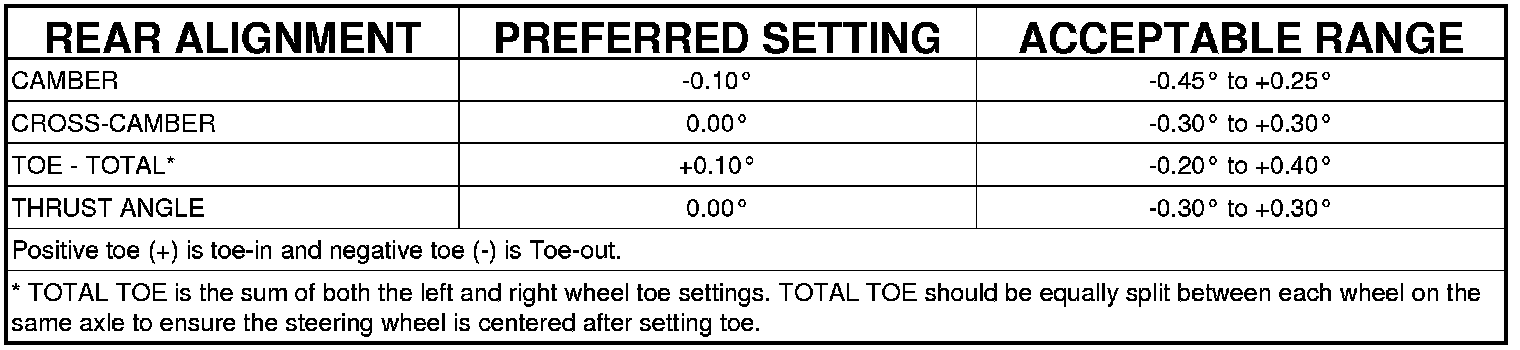

1500 SERIES - ALL

2500 SERIES - 4X2

2500 SERIES - 4X4

3500 SERIES - 4X2

3500 SERIES - 4X4

2500/3500 SERIES - BOX OFF - 4X2

2500/3500 SERIES - BOX OFF - 4X4

3500 SERIES - CAB CHASSIS

4500/5500 SERIES - WHEEL BASE 144, 164, 168

4500/5500 SERIES - WHEEL BASE 188, 192

4500/5500 SERIES - WHEEL BASE 204
