Steering Column Opening Cover - Installation

INSTALLATION

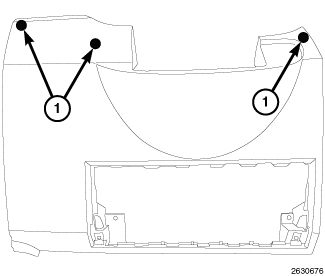

1. Position the steering column opening cover in place and seat the three clips (1) fully.





2. Install the screws (1).
3. Install the instrument panel end cap. Instrument Panel End Cap - Installation





4. Install the screws (1).
5. Install the knee blocker airbag (if equipped) Knee Blocker Air Bag - Installation.

WARNING: Do not connect the battery negative cable Component Tests and General Diagnostics . Serious or fatal injury may result if the system test is not performed first.
